The Ialian Ultra Thin Ball Valvee is installed in the diameter direction of the pipe. In the cylindrical channel of the valve body, the disc-shaped valve plate rotates around the axis with a rotation angle between 0° and 90°. When rotated to 90°, the valve is fully open. This valve is generally installed horizontally.
When the ball valve is in the fully open position, the thickness of the valve plate is the resistance of the medium flowing through the valve body, so the pressure drop generated by the valve is very small, so it has good flow control characteristics. Tower valves have two sealing types: elastic seal and metal seal. For elastic sealing valves, the sealing ring can be embedded in the valve body or attached to the periphery of the valve plate.

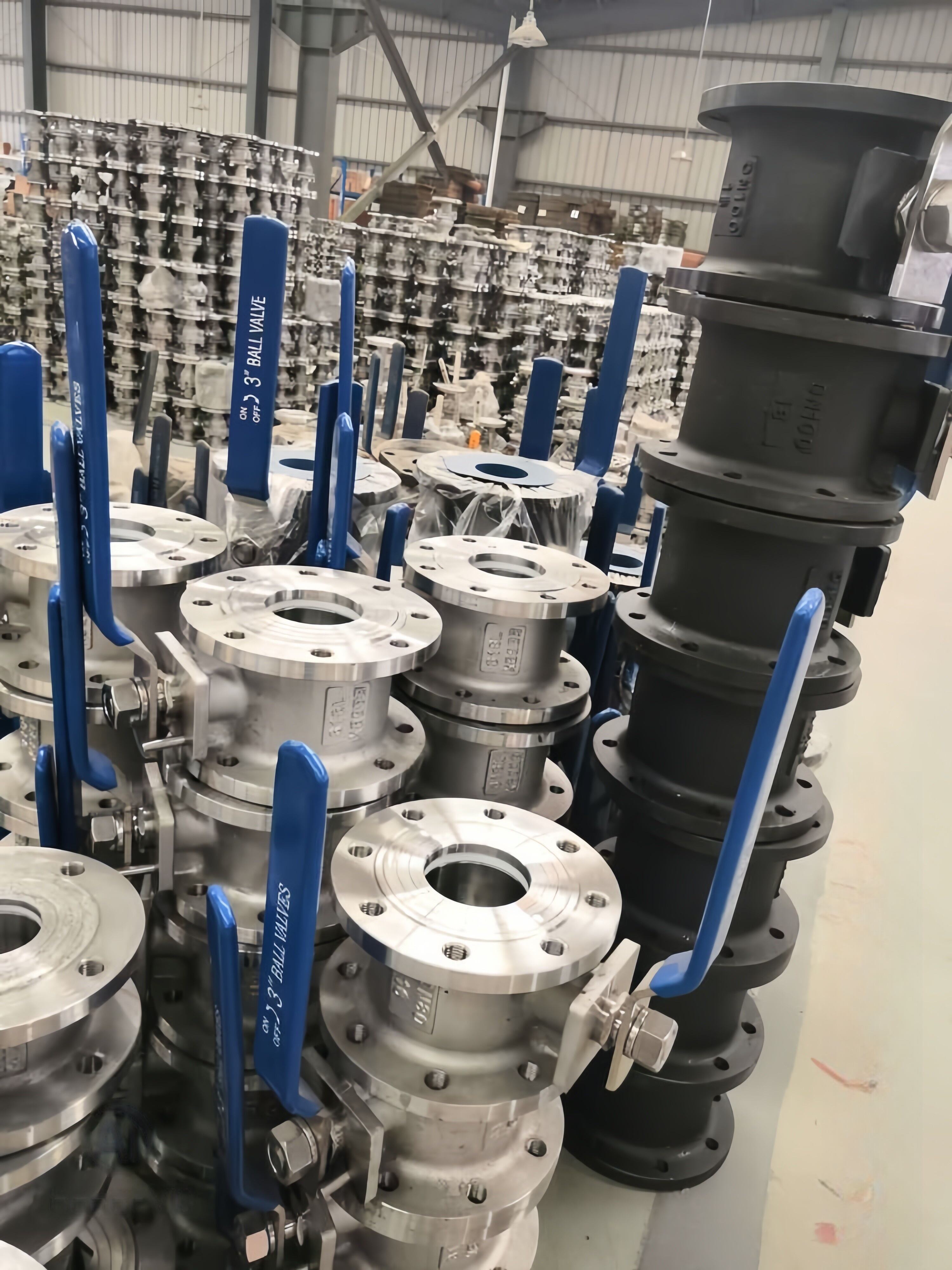

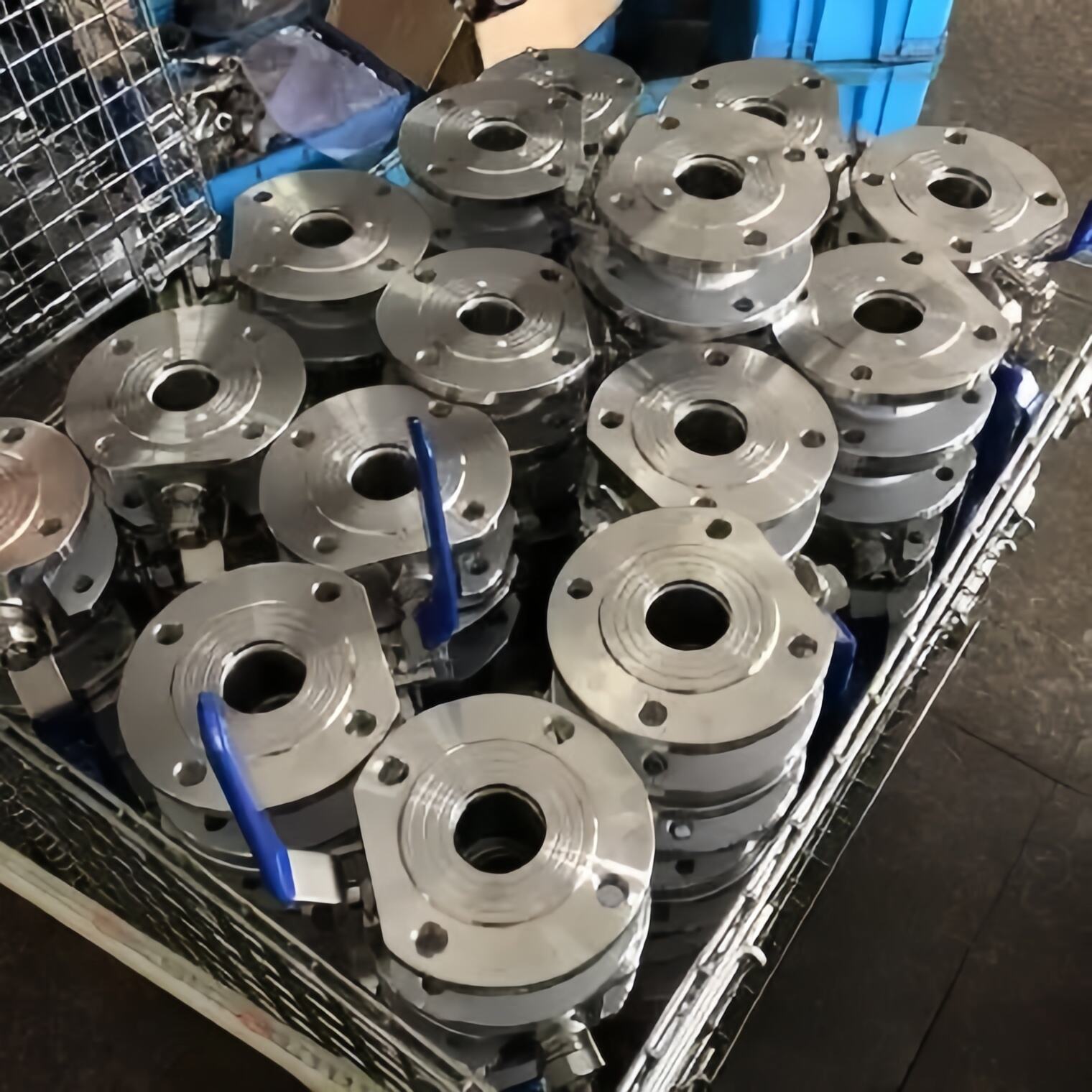

Ialian Ultra Thin Ball Valve

- Product size: DN 15~100(NPS 1/2"~4")

- Structure length: Q/SYF012-96

- Flange standard: GB/T 9113

- Transmission mode: handle or worm gear

- Design and manufacture: GB/T 12224/ANSI B16.34

- Inspection and test: APl 598
