The electric centerline butterfly valve is a butterfly valve matched with a GMT or GMTQT series actuator. The operation can be controlled by inputting a control signal (4~20mA or 1~5VDC) and a single-phase power supply. The electric butterfly valve has strong functions, small size, light weight, low cost, and high performance. Reliable, simple to match, and with large flow capacity, the electric butterfly valve is especially suitable for occasions where the medium is viscous, contains particles, and is fibrous. At present, the electric regulating butterfly valve is widely used in industrial automatic control systems in food, environmental protection, light industry, petroleum, paper making, chemical industry, teaching and scientific research equipment, electric power and other industries.

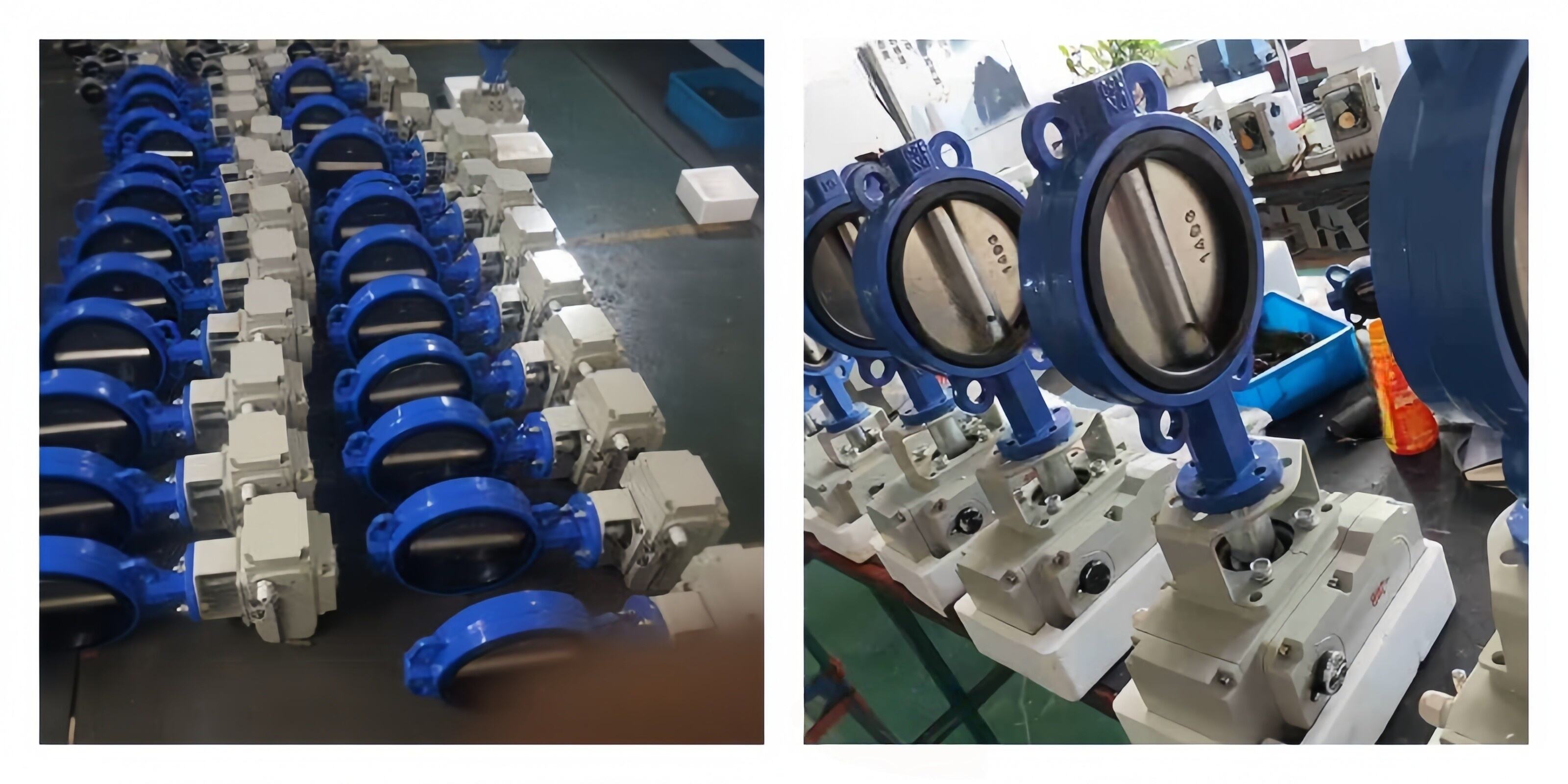

Electric Wafer Butterfly Valve

- Nominal diameter:50-400mm

- Nominal pressure: PN1.0, 1.6.2.5MPa

- Connection type: Double-clip type connection, flange connection

- Material: HT200 ZG251 ZG1Cr18Ni9 ZG0Cr17Ni12Mo2 PTFE lined

- Medium temperature:Room temperature type:-20℃~+200℃  Heat dissipation type:-40℃-+450℃

- Applicable medium: fresh water, sea water, food, natural gas, alcohol.salt, acid, alkali, oil, vapor, air, etc.
