The electric ball valve is a rotary ball valve with a 90" angle. It has excellent sealing performance, large flow capacity, small flow resistance coefficient, simple structure, easy maintenance, and long service life. The valve body channel and the connecting pipe diameter are equal and merged into one diameter, and the medium is several can flow through without loss. Equipped with high-performance actuators such as GNT and GIMTQT, the product is usually used in situations with strict sealing requirements. In addition to controlling gas, wave body, and steam media, it is also suitable for controlling sewage and fibrous impurities. medium, widely used in petroleum, chemical industry, metallurgy, light industry, papermaking, power stations, refrigeration and other working fields.

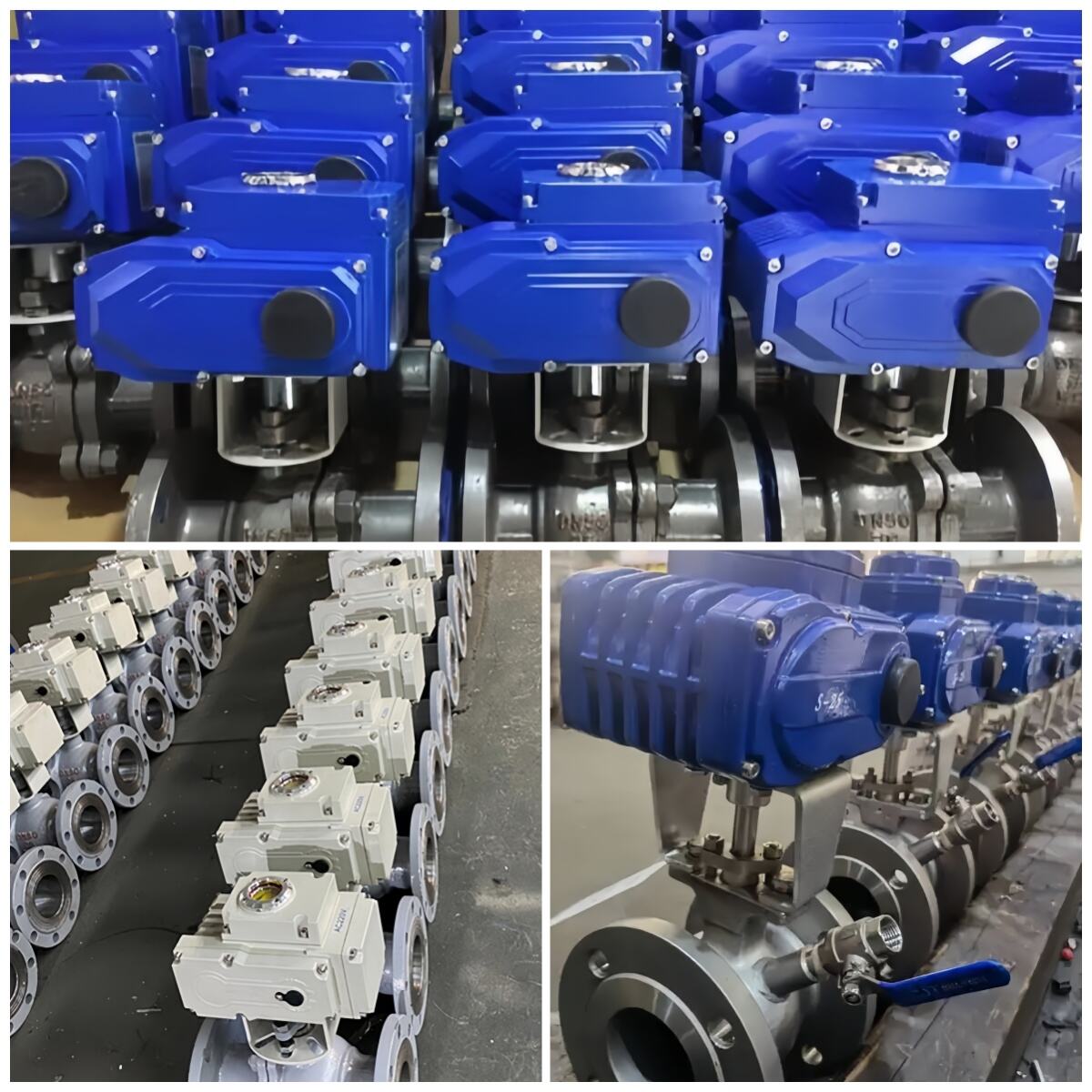

Electric Flange Ball Valve
- Nominal diameter(mm):DN15-DN400(mm)
- Nominal pressure(MPa):1.0、1.6、2.5、4.0、6.4MPa
- Applicable medium:Water, petroleum, nitric acid, acetic acid, viscous fluid, paste, strong oxidizing medium, etc.
- Medium temperature:-40℃~180℃ -40℃~350℃
- Leakage:0
- Rotatingangle of ball:90°
- Valve body material：A105、F304、F316、WCB、FZG1Cr18Ni9Ti、ZG1Cr18Ni12MO2Ti、CF8、CF8M CF3M
- Seat material：PTFE (room temperature), special PPL (high temperature), metal seal (high temperature)
